VESA adapter plates: fixing a pattern mismatch
Quick answer

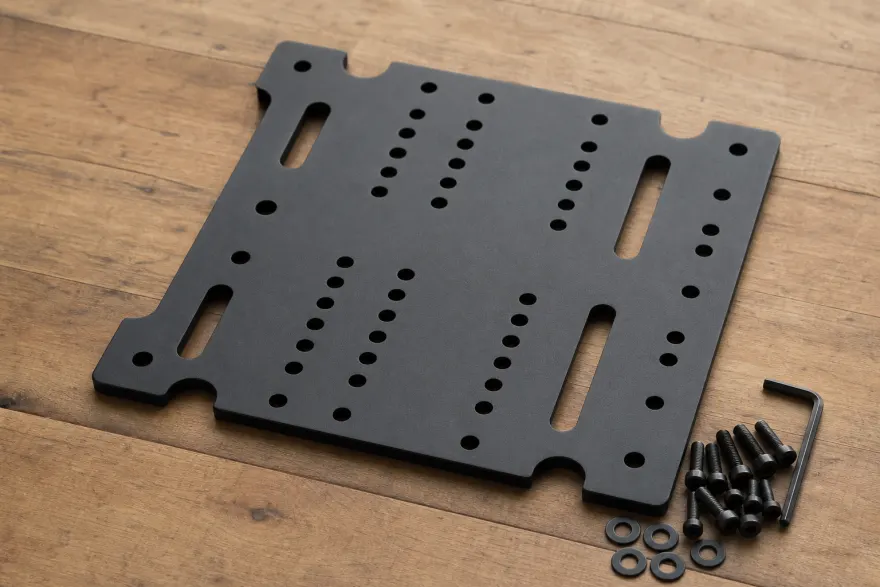

A VESA adapter plate is a flat steel bracket that converts one hole pattern to another — most commonly extending a 200×200 mm mount to reach 400×400 mm TV holes. It fixes geometry only: the mount's weight rating is unchanged, and the plate itself adds 2–5 lb to the load. Use one when our fit checker says FITS WITH ADAPTER: weight and screen size pass, the pattern doesn't.
When a plate is the right call
| Situation | Adapter? | Why |
|---|---|---|
| Mount range tops out at 400×400; TV is 600×400 | Yes | Extension plate reaches the wider holes; weight and size already pass. |
| Mount is square-only (400×400); TV is 400×300 | Yes | Plate provides the missing 300 mm vertical rows. |
| Mount minimum is 200×200; TV is 100×100 | Usually no | Most mounts already include small patterns — re-check the range before buying anything. |
| TV weighs more than 80% of the mount's rating | No | A plate never increases capacity. Replace the mount. |
| Holes are fine but recessed or on a curved back | No — use spacers | That's a standoff problem, not a pattern problem. See the screw guide. |
How to size one — 3 checks
- Both patterns listed. The plate must explicitly list your mount-side pattern and your TV-side pattern (find yours in the VESA Checker).
- Rated above the TV's weight with margin. Plate rating ≥ TV weight ÷ 0.8. A 40 lb TV needs a plate rated 50 lb or more.
- Hardware accounted for. Bolt length grows by the plate thickness (2–4 mm typical); thread engagement at the TV must stay at least one bolt-diameter deep.
Double-check before buying
- Confirm your TV's actual pattern by measuring center-to-center — don't trust the mount's rejection alone.
- Verify the plate lists a weight rating and covers both patterns explicitly, not “universal fit”.
- Check total depth: plate + mount can push the TV 10–20 mm further off the wall than the mount alone.
Frequently asked questions
Are VESA adapter plates safe?
A steel plate rated above your TV's weight, bolted per its instructions, is safe for the patterns it lists. The plate must state a weight rating — unrated universal plates are a gamble. Keep the combined system margin: TV weight at or below 80% of BOTH the plate's and the mount's rating.
Can an adapter make a small mount hold a big TV?
No. The plate changes hole geometry, not strength. A mount rated 60 lb stays a 60 lb mount with a plate on it — and the plate adds 2–5 lb of its own weight to the load. Never use an adapter to work around a weight rating.
Which direction do adapters usually convert?
Most extend a mount's reach upward: e.g. a 200×200 mount plate gets extended to reach 400×400 TV holes. Converting downward (large mount plate onto a tiny 75×75 TV) is rarer and often unnecessary — most mounts already include small patterns in their range.
Do I need longer screws with an adapter plate?
Usually yes, by the plate's thickness — typically 2–4 mm — plus any spacers. The TV-side documented length still applies at the insert: thread engagement must stay the same. Kits normally ship with matched hardware; verify with the hand-test before hanging the TV.
Sources
- VESA FDMI standard (pattern definitions)
- Weight-margin rule explained in our weight & studs guide.
