Verified against manufacturer manuals

Find your TV's VESA size & a mount that truly fits

Exact mounting pattern, screw thread and weight without the stand for 88 TVs and 40 monitors — every spec cites the manufacturer's documentation, and two checkers do the fit math for you.

Try a model number from the back-panel sticker: UN65TU7000, OLED55C2PUA, XR-65A80L

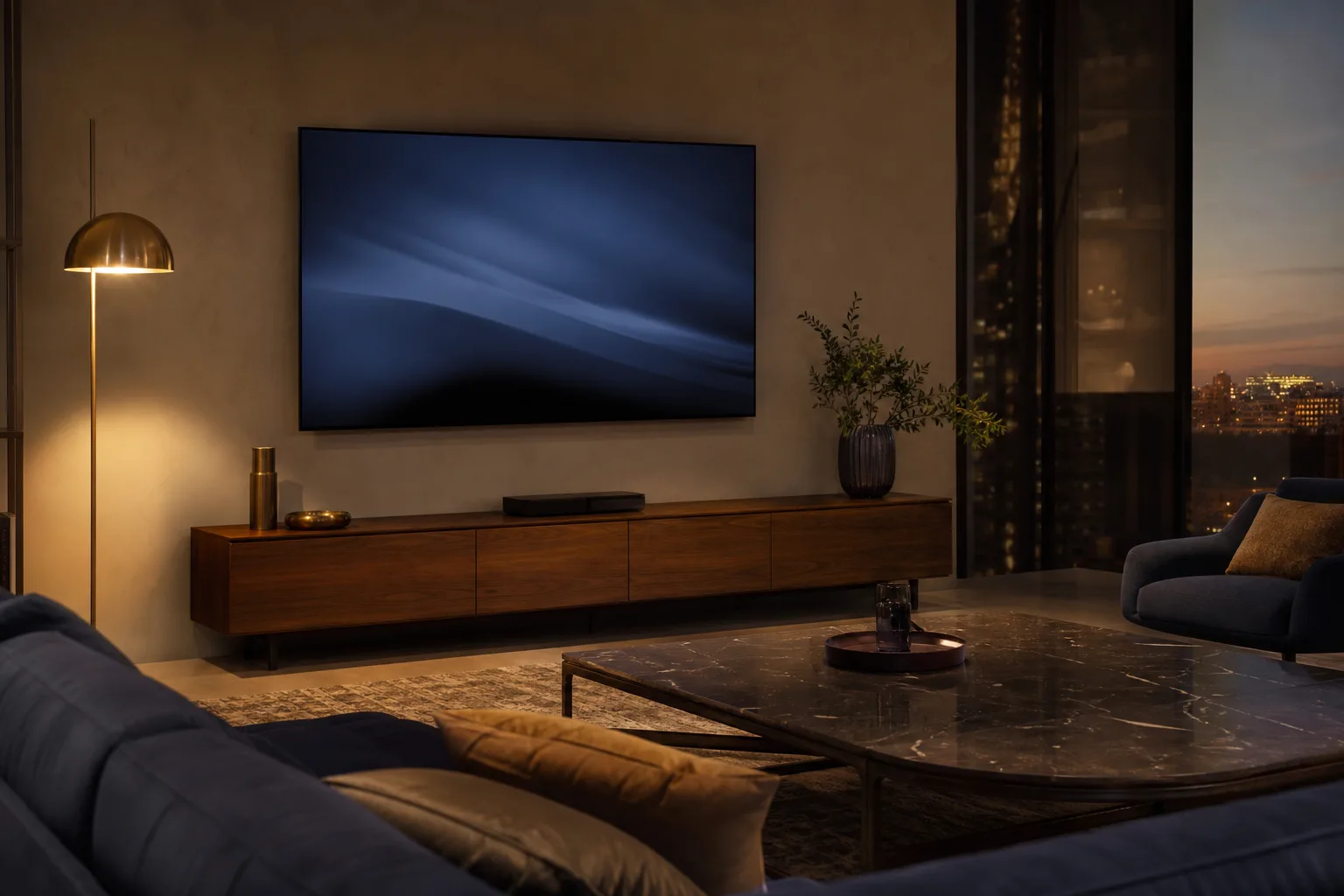

Living room with a large TV wall-mounted at eye level above a low media console

Quick answer

A TV's VESA size — also called the bolt pattern or hole pattern — is the center-to-center spacing of the 4 mounting holes on its back, in millimeters. Common sizes run from 100×100 mm on small sets to 400×400 mm and up on large panels. This site lists the exact pattern, screw thread and stand-free weight for 88 TVs, each citing the manufacturer's documentation as its source. New to the standard? Start with what VESA means.

Two ways to check fit

VESA Checker

Type a model number → get the pattern, screw spec, weight and mounts that fit.

Will It Fit?

Pick your TV and a specific mount → verdict: fits, fits with adapter, or not recommended — with reasons.

VESA size by screen size — what the data shows

Screen size never guarantees a pattern, but the distribution is real. Computed live from the 88 verified models; each row links to the full per-size table.

Screen size	Most common pattern	Share	Weight range (no stand)	Models
24-inch	100×100 mm	100%	6–6 lb	1
32-inch	200×100 mm	100%	8–8 lb	1
40-inch	200×100 mm	100%	11–11 lb	1
42-inch	300×200 mm	100%	19.8–19.8 lb	1
43-inch	200×200 mm	60%	13.7–22.3 lb	10
48-inch	300×200 mm	100%	32.8–32.8 lb	2
50-inch	200×200 mm	56%	18.9–27.4 lb	9
55-inch	300×200 mm	26%	22–41.9 lb	31
58-inch	400×300 mm	100%	33.5–33.5 lb	1
65-inch	400×300 mm	52%	30.9–56.4 lb	23
70-inch	400×300 mm	100%	53.4–53.4 lb	1
75-inch	400×400 mm	40%	50–71 lb	5
77-inch	300×200 mm	50%	45.9–76.7 lb	2

How high should it hang once it fits? See the mounting-height chart.

Browse by brand

Browse by pattern

Computer monitors, same standard

The monitor side of the database: 40 verified models across 13 brands — VESA pattern, M4 screw spec and weight without the stand, each cited to the manufacturer's documentation. Browse the monitor VESA database or start with the arm, stand & adapter guide.

How it works

Find the model number on the sticker on the back of the TV (not the marketing name — the code like UN65TU7000 or OLED55C2PUA).
Look it up here. You get the VESA pattern in mm, the screw thread and length, and the weight without the stand — with a link to the manufacturer source.
Match a mount: the pattern must be covered by the mount's range, and the mount's rating should exceed the TV's weight by at least 20%. Unsure which bracket style? Compare fixed, tilting and full-motion mounts.

Recently added models

Brand	Model	Size	VESA (mm)	Screws	Weight (no stand)
TCL	43S455	43"	200×200	M6	13.7 lb (6.2 kg)
TCL	55R635	55"	300×300	M6	41.9 lb (19 kg)
Hisense	65A6H	65"	400×300	M6	36.4 lb (16.5 kg)
Sony	XR-55A80L	55"	300×300	M6	39.5 lb (17.9 kg)
Sony	XR-65A80L	65"	300×300	M6	51.4 lb (23.3 kg)
Sony	XR-77A80L	77"	300×300	M6	76.7 lb (34.8 kg)

Frequently asked questions

What is a VESA pattern?

The VESA pattern is the rectangle formed by the 4 threaded holes on the back of a TV, measured center-to-center in millimeters — for example 400×300 mm. A wall mount fits when its plate covers that exact spacing. It is defined by the VESA FDMI standard used by every major TV brand.

How accurate is this database?

Every one of the 88 published models cites the manufacturer's installation manual or spec page and links that document as its source. Models we could not confirm against manufacturer documentation are not published at all.

Does screen size tell me the VESA size?

No. Two 55-inch TVs can use 200×200 and 400×300 mm patterns. Size only narrows the likely options — always look up the exact model number or measure the holes yourself.

Is the VESA pattern the same as the bolt pattern or hole pattern?

Yes — "VESA size", "bolt pattern", "hole pattern", "mounting-hole spacing" and "FDMI pattern" all name the same measurement: the center-to-center distance between the 4 threaded holes on the back of the screen, width × height in millimeters.

Where the data comes from

Every spec cites the manufacturer's installation manual or official spec page — never a forum or a guess. Rows that fail verification are excluded from the site entirely. Read more about our process.
